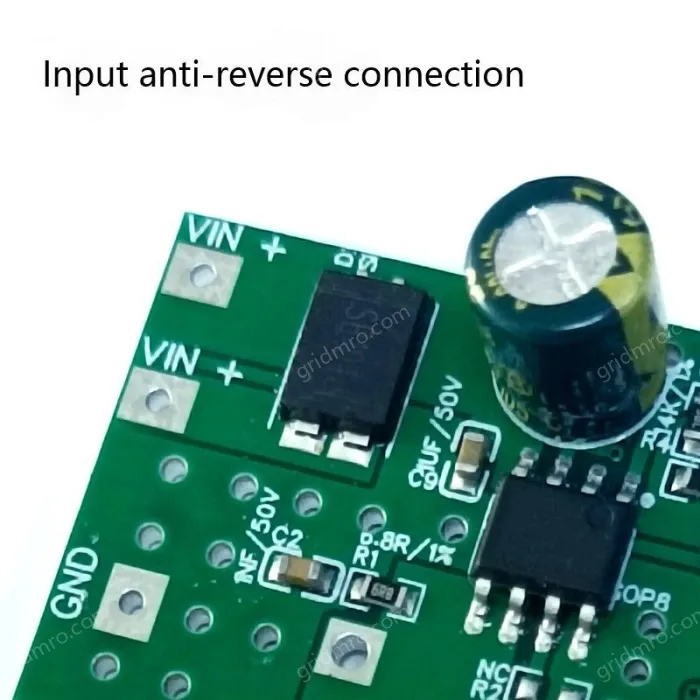

DC-DC DC power supply step-down module This product is a high-current and high-power step-down module, with an output of up to 10A The output voltage parameter is adjustable.

Monolithic synchronous step-down DC/DC adapter with jitter frequency-averaged current-mode control architecture. Capable of driving 5-10A continuous loads, with good line and load regulation capabilities.

The voltage is 7-38V working, and the output voltage is adjustable from 1V to 25V. There are short circuit and thermal protection circuits to improve the reliability of the system. Internal soft-start to avoid input inrush current at startup.

Wide VIN range: 7-38V The output current can reach 10A 96% efficiency CC/CV mode control Built-in adjustable line compensation adjustable output voltage 2% output voltage accuracy 6% current limit accuracy Programmable Frequency (130kHz - 300kHz) Burst mode operates with light load internal loop compensation Internal soft-start.
