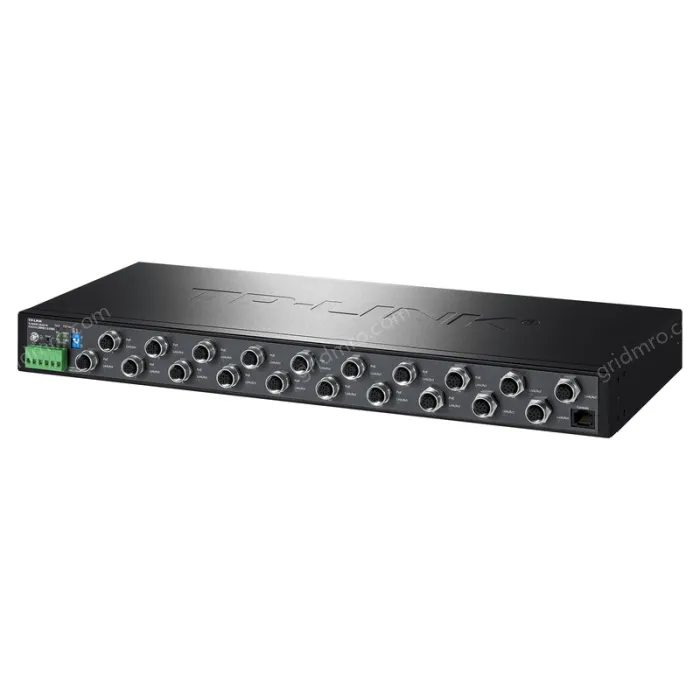

TL-IS500P-14L6G-TN is a Layer 3 managed industrial PoE switch specially designed and developed EN50155 by TP-LINK for rail transit, shipbuilding, vehicle communication and other applications. Tight and secure connections with M12 connectors allow them to work reliably even in the face of environmental factors such as vibration and shock.

• Provide 6 x 10/100/1000M adaptive M12 ports (8pin, A-code, female)
• 14 x 10/100M adaptive M12 ports (4pin, D-code, female)
• EN50155 standard shock and vibration resistant
• Operating temperature: -40°C~75°C, fanless design, more reliable heat dissipation
• Dual redundant wide voltage input: 48V~154VDC, which greatly improves the reliability of product power supply
• It supports the IEEE802.3af/at standard, and the maximum PoE output of a single port can reach 30W, and the maximum PoE output power of the whole machine is 120W
• Tabletop 19-inch housing, rack-mountable
• It supports remote management of TP-LINK commercial cloud platform and mobile APP management
• Layer 3 routing protocol, complete security protection mechanism, and perfect ACL/QoS policy
• Support ERP ring network function and RPL configuration
• EMC high protection level, not afraid of all kinds of harsh environments
• *This model does not come with power supply/wiring at the factory, so it needs to be purchased separately;
• It is recommended to buy our industrial-grade power supply: TL-P160-54 industrial-grade

It meets EN50155 standards and is suitable for applications in rail vehicles, ships and other fields

The M12 connector is tightly and firmly connected, which can also ensure the stable operation of network equipment in high-vibration and high-impact environments, and has the ability to operate under extreme altitude, temperature and humidity, and can adapt to different environmental differences such as shock, vibration, surge and electrical performance, making it an ideal choice for various industrial applications.

IEC/EN 61000-4 high standard of industrial-grade protection

High-standard electromagnetic anti-interference protection design, suitable for various harsh electromagnetic environments such as electric power and industrial plants.

The metal shell, M12 aviation joint, and internal glue pouring greatly improve the anti-corrosion performance of the equipment.

PCB coating protection for harsh industrial environments.

48V~154VDC wide voltage input, multiple power protection

It supports two power supplies to be connected at the same time, and the power supply is redundant to ensure the uninterrupted work of the equipment.

It supports a wide voltage input of 48V~154VDC, and is suitable for various industrial power supplies.

Three types of power protection are provided to greatly improve the reliability of power supply to the switch.

Strictly abide by the IIEEE 802.3 af/at standard, and the POE output power of the whole machine can reach 120W

Strictly complying with the IIEEE 802.3 af/at standard, the power supply of a single port can reach 30W, and the output power of the whole machine can reach 120W, fully ensuring the power supply needs of each port.
With PSE standard over-current, over-voltage, surge, short circuit and other protection mechanisms, each port has its own independent circuit, with independent fuse, even if a single fault, will not affect the normal operation of other ports.

Selected devices, with high standards of system design and production control

The PCB board is made of electroless nickel gold plate, which has high corrosion resistance, oxidation resistance, and excellent electrical properties.

Select high-specification and long-life Japanese capacitors to greatly improve the service life of the product.

The circuit design of the highly redundant system avoids the sudden change of the external environment from affecting the normal operation of the equipment.

TP-LINK's rigorous industrial-grade production and testing process is adopted to greatly improve the reliability of the equipment.

Three-layer network management function, powerful business processing capabilities

It supports the RIP dynamic routing protocol, dynamically generates and updates routing tables, and solves the routing problem of small and medium-sized networks after subnets are divided.

Static routes are supported, and the administrator manually configures route entries to achieve simple, efficient, and reliable communication between different network segments.

DHCP servers are supported, which assign IP addresses to hosts in the network.

DHCP trunking is supported, and switches in different interfaces or subnets can also obtain IP addresses, reducing the number of DHCP servers.

Proxy ARP is supported, so that hosts in different physical networks on the same network segment can communicate normally.

IEEE 802.1Q VLAN, MAC VLAN, protocol VLAN, and private VLAN are supported, allowing users to flexibly divide VLANs according to different requirements.

GVRP is supported to implement dynamic distribution, registration, and attribute propagation of VLANs, reducing the amount of manual configuration and ensuring the correctness of configuration.

The VLAN VPN function encapsulates the outer VLAN tag for the user's private network packets at the public network access end, so that the packets carry two layers of VLAN tags across the public network.

It supports QoS, three priority modes based on port, 802.1P-based and DSCP-based, and four queue scheduling algorithms of Equ, SP, WRR, and SP+WRR.

ACLs are supported to filter packets by configuring matching rules, processing operations, and time permissions, providing flexible security access control policies.

It supports IGMP V1/V2 multicast protocols, MLD snooping, and IGMP snooping to meet the requirements of multi-terminal HD video surveillance and video conferencing access.

IPv6 is supported to meet the requirements of network transition from IPv4 to IPv6.

Complete security protection mechanism

Supports IP address, MAC address, VLAN, and port quaternary binding to filter data packets.

Supports ARP protection against ARP spoofing and ARP flood attacks, such as gateway spoofing and man-in-the-middle attacks, which are common in LANs.

IP source protection is supported to prevent illegal address spoofing, including MAC address spoofing, IP spoofing, and MAC/IP spoofing.

DoS protection is supported, and attacks such as Land Attack, Scan SYNFIN, Xmascan, and Ping Flooding are supported.

It supports 802.1X authentication, provides authentication functions for LAN computers, and controls the authorization status of controlled ports according to the authentication results.

Port security is supported, which stops learning when the number of MAC addresses learned on a port reaches the maximum number to prevent MAC address attacks and control port network traffic.

Support DHCP Snooping, effectively eliminate private DHCP servers, and ensure the legitimacy of DHCP servers.

Versatile reliability protection

Supports STP/RSTP/MSTP SPANNING TREE protocol to eliminate Layer 2 loops and implement link backup.

Spanning tree security functions are supported to prevent devices in a spanning tree network from various forms of malicious attacks.

Static aggregation and dynamic aggregation are supported, effectively increasing link bandwidth, implementing load balancing, link backup, and improving link reliability.

Easy operation and maintenance

Supports various management and maintenance methods, such as web management and SNMP (V1/V2/V3).

Supports HTTPS, SSL V3, TLSV1, SSHV1/V2 and other encryption methods for safer management.

RMON, system logs, and port traffic statistics are supported, which is convenient for network optimization and transformation.

Supports cable detection, ping detection, and Tracert detection operations to easily analyze faulty network nodes.

It supports LLDP, which is convenient for the network management system to query and judge the communication status of the link.

CPU monitoring, memory monitoring, ping detection, Tracert detection, and cable detection are supported.
