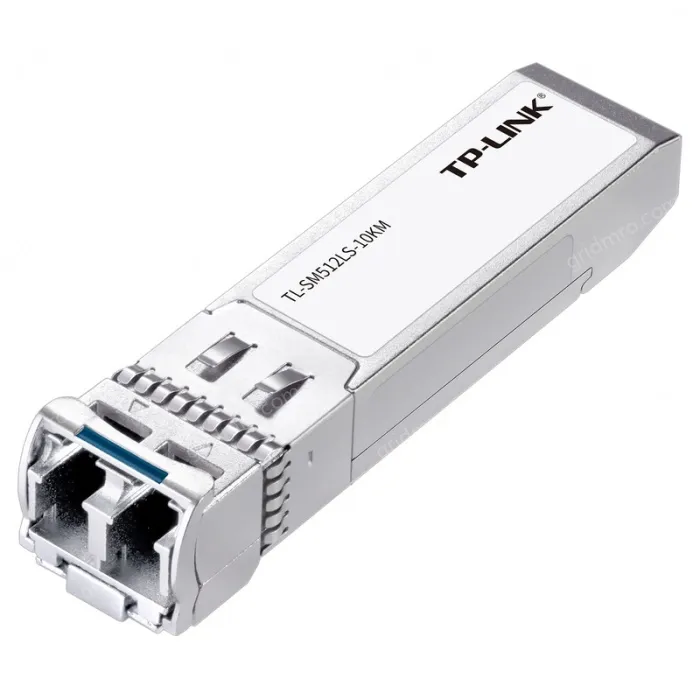

TL-SM512LS-10KM industrial grade is TP-LINK's latest industrial-grade 10 Gigabit single-mode dual-fiber SFP+ optical module. Designed for industrial environments, the high-quality components are selected for superior performance, and the housing can be operated from -40°C to 85°C.

The TL-SM512LS-10KM industrial grade conforms to the SFP+ MSA protocol and adopts a hot-swappable standard SFP+ package, which is easy to use and has a wide range of applications.

TL-SM512LS-10KM is industrial-grade in line with IEEE 802.3ae 10 Gigabit Ethernet standard, with a rate of up to 10.3125Gbps, transmitted through a pair of single-mode fibers, and the longest distance can reach 10KM.

• Housed in a hot-swappable SFP+ package
• Full-duplex optical transceiver integrated module
• Compliant with SFP MSA, IEEE 802.3z standards
• Rates up to 10.3125Gbps
• Single-mode optical fiber transmission, up to 10KM
• Dual-fiber LC optical port, center wavelength 1310nm
• Built-in digital diagnostics
• The operating voltage is 3.3V
• The working temperature of the shell is -40°C ~ 85°C

Support standards

• IEEE 802.3ae

Transmission medium

• Single-mode fiber

Transmission distance

• 10KM

Transmission rate

• 10.3125Gbps

Port type

• Dual-fiber LC

Center wavelength

• 1310nm

Operating voltage

• 3.3V

Housing operating temperature

• -40℃ ~ 85℃

Light parameters

• Average emitted optical power: -8.2 ~ 0.5dBm
• Receiver sensitivity: -14.4dBm
