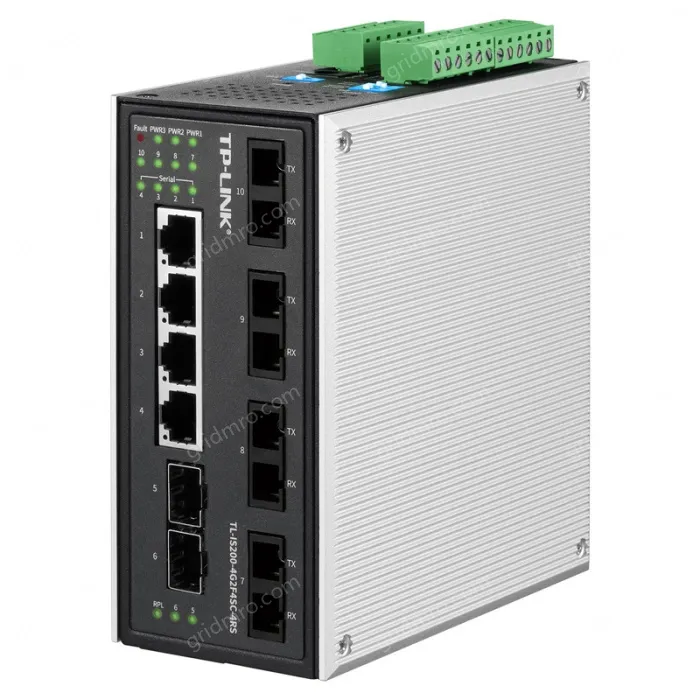

TL-IS200-4G2F4SC-4RS is a TP-LINK managed industrial switch designed for industrial environments. It provides 4 Gigabit adaptive RJ45 ports, 2 Gigabit SFP ports, 4 pairs of Gigabit single-mode dual-fiber SC fiber ports, and 4 RS-232/485 serial ports

• 4 Gigabit adaptive RJ45 ports, 2 Gigabit SFP ports
• 4 pairs of Gigabit single-mode dual-fiber SC optical fiber ports, 4 RS-232/485 serial ports
• The working wavelength of the SC optical fiber port is 1310nm, and the optical fiber transmission distance is 20km
• Industrial operating temperature: -40°C~75°C(85°C@240LFM)
• Three redundant power inputs: 9.6V~60VDC
• High EMC protection level, conformal coating protection, IP30 protection
• Multiple installation methods: rail installation + wall mounting
• VLAN and WEB management switches are provided to adapt to various complex network environments
• Modbus RTU to TCP is supported
• Support serial server function
• Support ERPS ring network protocol and RPL configuration
• It supports simple network management functions and local centralized management of TUMS
• *The industrial switch is not equipped with a power supply at the factory, if you need to use the power supply, please purchase it separately
• It is recommended to buy our industrial grade power supply: TL-IP75-24 or TL-IP75D-24

-40°C~85°C working temperature design, no fear of extreme temperatures

TL-IS200-4G2F4SC-4RS is designed in strict accordance with the working temperature of -40°C~85°C (ambient wind speed 240LFM) and -40°C~75°C (natural heat dissipation).

Industrial-grade protection design

High-standard electromagnetic anti-interference protection design, suitable for various harsh electromagnetic environments such as electric power and industrial plants.

Electroless nickel gold PCB board greatly improves the corrosion resistance of the equipment.

Conformal coating protection to improve the reliability of industrial-grade products.

9.6V~60VDC wide voltage input

It supports simultaneous access of three power supplies, and the power supply is redundant to ensure the uninterrupted work of the equipment.

It supports a wide voltage input of 9.6V~60VDC, and is suitable for various industrial power supplies.

Three types of power protection are provided to greatly improve the reliability of power supply to the switch.

Featured devices

The PCB board is made of electroless nickel gold plate, which has high corrosion resistance, oxidation resistance, and excellent electrical properties.

Select high-specification and long-life Japanese capacitors to greatly improve the service life of the product.

The circuit design of the highly redundant system avoids the sudden change of the external environment from affecting the normal operation of the equipment.

TP-LINK's rigorous industrial-grade production and testing process is adopted to effectively release the electrical stress of components and greatly improve the reliability of equipment.

Steel shell body, sturdy and durable, efficient heat dissipation

It adopts steel shell structure, which is strong and durable, and has high strength. The steel shell design naturally dissipates heat, which can ensure the stable operation of the product without fan, and is noiseless and quiet, and adapts to various harsh industrial environments.

DIN rail installation is easy and flexible

It can be easily installed on DIN rails and wall-mounted, making the use of industrial-grade switches simple and reliable.

Port interrupt alarm, real-time monitoring of port working status

Provides port alarm function to monitor port working status in real time.

Excellent device compatibility

TP-LINK has more than 100 million Ethernet switch devices running all over the world, serving all walks of life, ensuring that TP-LINK Ethernet switches can be compatible with all kinds of network equipment and production equipment.

Industrial field serial port access, fast data collection and transmission

It can support standard communication interface protocols such as RS-232/485, support Modbus RTU to TCP, realize the access of serial port equipment in industrial sites to IP network, ensure the rapid collection and transmission of field data, and help the centralized processing of business data.

The ERP ring network protocol provides fast protection at the 50ms level

The ERPS ring protocol is a protection protocol with too many rings. It can be single-ring and double-ring networking, and supports fast ring network (fault self-healing time <50ms), effectively avoiding network loops, broadcast storms and other phenomena, protecting working data, and improving network reliability.

The TL-IS200-4G2F4SC-4RS has strong environmental adaptability and high-speed topological self-healing, and can be widely used in various security and surveillance scenarios.

Simple and practical network management functions

It supports the management and maintenance of the device through the web interface and PC management software.

802.1Q VLAN, MTU VLAN, and port VLAN are supported, allowing users to flexibly divide VLANs according to their needs.

It supports QoS and three priority modes based on ports, 802.1P, and DSCP to optimize bandwidth configuration.

Port aggregation is supported, which effectively increases link bandwidth, implements link backup, and improves link reliability.

Port mirroring is supported, and data from a port is forwarded to the mirrored port for network monitoring.

Port monitoring is supported, and the traffic information of each port is counted to facilitate traffic monitoring and network anomaly analysis.

It supports bandwidth control, configures port data input/output transmission rates, and reasonably allocates and utilizes bandwidth.

Storm suppression is supported to limit the broadcast traffic allowed to be received by the port to prevent broadcast storms from seriously slowing down network performance.
