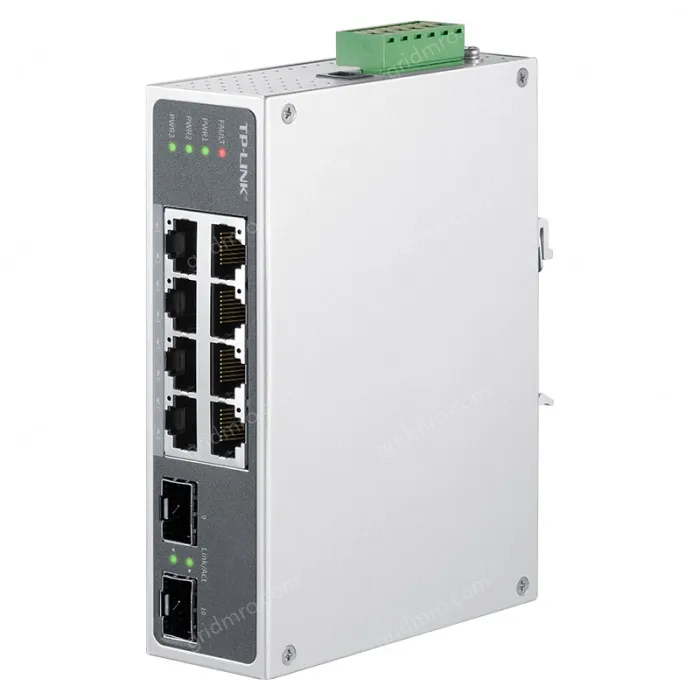

TL-SG2210 Industrial Grade is TP-LINK's industrial Ethernet switch designed for industrial environments. 8 Gigabit Adaptive Ethernet ports and 2 Gigabit SFP ports are available.

• Provides 8 x 10/100/1000M adaptive RJ45 ports and 2 Gigabit SFP ports
• Industrial working temperature: -40°C~75°C
• ERPS ring network protocol, RPL configuration
• Wide voltage input: 9.6V~60VDC
• Multiple installation methods: rail installation + wall mounting
• IP30 protection: reduce the impact of dust
• It provides WEB management, broadcast storm protection, and port interruption alarm switches to adapt to various complex network environments
• Three-way power input, redundant backup, greatly improve the reliability of product power supply
• EMS has a high level of protection, and is not afraid of all kinds of harsh environments
• *The industrial switch is not equipped with a power supply at the factory, if you need to use the power supply, please purchase it separately
• It is recommended to buy our industrial-grade power supply: TL-IP75-24 or TL-IP75D-24
• Version 4.0 and above can be upgraded with the latest software to support the ERPS ring network protocol

-40°C~75°C working temperature design, no fear of extreme temperatures

TL-SG2210 industrial-grade Ethernet switch is designed in strict accordance with the working temperature of -40°C~75°C, selects industrial-grade devices, and adopts natural heat dissipation mode to ensure that the equipment works stably for a long time in this temperature range and meets all kinds of harsh environments.

The ERP ring network protocol provides fast protection at the 50ms level

The ERPS ring network protocol is a ring network protocol released by TP-LINK for industrial environments. It can be single-ring and multi-ring networking, and supports fast ring network (fault self-healing time <50ms), effectively avoiding network loops, broadcast storms and other phenomena, protecting working data, and improving network reliability. The TL-SG2210 industrial grade has strong environmental adaptability and high-speed topology self-healing, and can be widely used in various security, monitoring and other scenarios, and the link switching video is free of lag.

Industrial-grade protection design

High-standard electromagnetic anti-interference protection design, suitable for various harsh electromagnetic environments such as electric power and industrial plants.

Metal shell, electroless nickel gold PCB board, greatly improve the anti-corrosion performance of the equipment.

The housing can be protected by IP30 to reduce the impact of dust on the normal operation of the equipment.

9.6V~60VDC wide voltage input, multiple power protection

It supports simultaneous access of three power supplies, and the power supply is redundant to ensure the uninterrupted work of the equipment.

It supports a wide voltage input of 9.6V~60VDC, and is suitable for various industrial power supplies.

Three types of power protection (reverse polarity protection, short-circuit protection, and surge protection) are provided to greatly improve the reliability of power supply to the switch.

Specially selected devices that are not afraid of all kinds of harsh industrial environments

The PCB board is made of electroless nickel gold plate, which has high corrosion resistance, oxidation resistance, and excellent electrical properties.

Select high-specification and long-life Japanese capacitors to greatly improve the service life of the product.

The circuit design of the highly redundant system avoids the sudden change of the external environment from affecting the normal operation of the equipment.

TP-LINK's rigorous industrial-grade production and testing process is adopted to effectively release the electrical stress of components and greatly improve the reliability of equipment.

Compact body design, metal shell, efficient heat dissipation

The size of the body is only 137mm*100mm*38mm, which can be easily placed in a compact work cabinet, and the high thermal conductivity metal shell has better heat dissipation effect.

DIN rail installation is easy and flexible

It supports DIN rail mounting and wall mounting, and can flexibly choose the installation method according to your needs, making the use of industrial-grade Ethernet switches simple and reliable.

Port interrupt alarms are supported

TL-SG2210 industrial grade supports port alarm function, real-time monitoring of port working status, and timely output of alarm signals.

Support WEB network management to meet the needs of industrial environment management

The TL-SG2210 provides WEB management functions and supports basic network functions such as flexible 802.1q VLAN, port monitoring, port aggregation, QoS, and bandwidth control.

Excellent device compatibility

TP-LINK has more than 100 million Ethernet switch devices running all over the world, serving all walks of life, ensuring that TP-LINK Ethernet switches can be compatible with all kinds of network equipment and production equipment.

Hardware specifications

Software Specifications

Other
