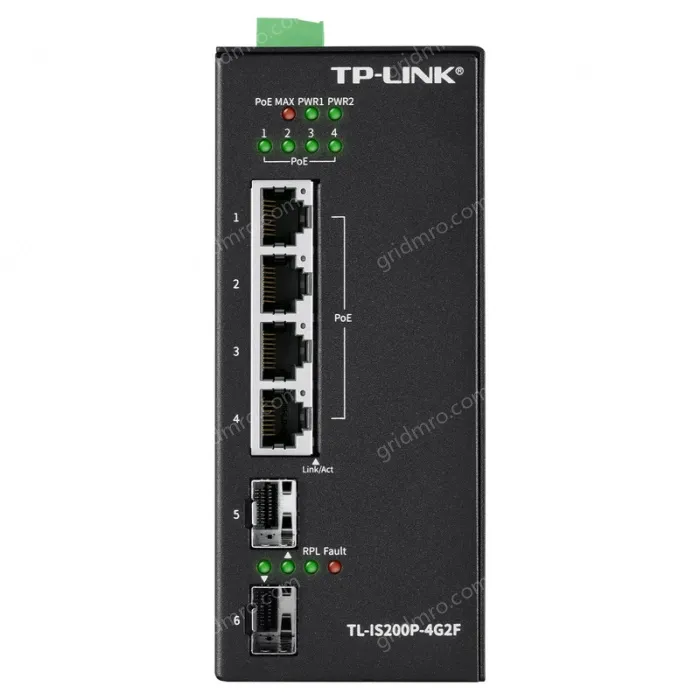

TL-IS200P-4G2F is a new managed industrial Ethernet PoE switch designed by TP-LINK for industrial environments. Provides 4 x 10/100/1000M adaptive Ethernet ports and 2 x 100/1000M SFP ports.

• 4 x 10/100/1000M adaptive RJ45 ports
• 2 x 100/1000M SFP ports
• Support IEEE802.3af/at standard, the maximum PoE output of a single port can reach 30W, and the maximum PoE output power of the whole machine is 120W(@48VDC)/60W(@24VDC)/30W(@12VDC)
• Industrial operating temperature: -40°C~65°C(75°C@300LFM)
• Supports ERPS ring network configuration and RPL configuration to improve network reliability
• Wide voltage input: 12V~57VDC
• Multiple installation methods: rail installation + wall mounting
• IP30 protection: reduce the impact of dust
• SUPPORT CLOUD MANAGEMENT FUNCTION, SUPPORT WEB MANAGEMENT AND BROADCAST STORM PROTECTION SWITCH
• Two power inputs, redundant backup, greatly improve the reliability of product power supply
• EMC high protection level, not afraid of all kinds of harsh environments
• *The industrial switch is not equipped with a power supply at the factory, if you need to use the power supply, please purchase it separately
• It is recommended to buy our industrial-grade power supply: TL-P160-54 industrial-grade

-40°C~75°C working temperature design, no fear of extreme temperatures

TL-IS200P-4G2F is designed in strict accordance with the working temperature of -40°C~75°C (ambient wind speed 300LFM) and -40°C~65°C (natural heat dissipation).

The ERPS ring network protocol provides fast protection at the level of 5 0ms

The ERPS ring protocol is a protection protocol with too many rings. It can be single-ring and double-ring networking, and supports fast ring network (fault self-healing time <50ms), effectively avoiding network loops, broadcast storms and other phenomena, protecting working data, and improving network reliability. The TL-IS200P-4G2F has strong environmental adaptability and high-speed topological self-healing, and can be widely used in various security, surveillance and other scenarios, with no lag in link switching video.

Industrial-grade protection design

High-standard electromagnetic anti-interference protection design, suitable for various harsh electromagnetic environments such as electric power and industrial plants.

Electroless nickel gold PCB board greatly improves the corrosion resistance of the equipment.

12V~57VDC wide voltage input, multiple power supply protection

It supports two power supplies to be connected at the same time, and the power supply is redundant to ensure the uninterrupted work of the equipment.

It supports a wide voltage input of 12V~57VDC, and is suitable for various industrial power supplies.

Three types of power protection are provided to greatly improve the reliability of power supply to the switch.

Featured devices

The PCB board is made of electroless nickel gold plate, which has high corrosion resistance, oxidation resistance, and excellent electrical properties.

Select high-specification and long-life Japanese capacitors to greatly improve the service life of the product.

The circuit design of the highly redundant system avoids the sudden change of the external environment from affecting the normal operation of the equipment.

TP-LINK's rigorous industrial-grade production and testing process is adopted to effectively release the electrical stress of components and greatly improve the reliability of equipment.

Steel shell body, sturdy and durable, efficient heat dissipation

TL-IS200P-4G2F adopts steel shell structure, which is sturdy and durable, and has high strength. The steel shell design naturally dissipates heat, which can ensure the stable operation of the product without fan, and is noiseless and quiet, and adapts to various harsh industrial environments.

DIN rail installation is easy and flexible

The TL-IS200P-4G2F can be easily mounted on DIN rails and wall-mounted, and can be flexibly selected according to needs, making the use of industrial-grade Ethernet switches simple and reliable.

Strictly abide by the IIEEE 802.3 af/at standard, and the POE output power of the whole machine can reach 120W

Strictly abide by the IIEEE 802.3 af/at standard, single port power supply up to 30W, the maximum output power of the whole machine is 120W (48VDC power input) / 60W (24VDC power input) / 30W (12VDC power input), fully protect the power supply needs of each port, with PSE standard over-current, over-voltage, surge, short circuit and other protection mechanisms, each port has its own independent circuit, with independent fuse, even if a single fault is It also does not affect the normal operation of other ports.

Excellent device compatibility

TP-LINK has more than 100 million Ethernet switch devices running all over the world, serving all walks of life, ensuring that TP-LINK Ethernet switches can be compatible with all kinds of network equipment and production equipment.

Simple and practical network management functions

It supports the management and maintenance of the device through the web interface and PC management software.

802.1Q VLANs, MTU VLANs, and port VLANs are supported, allowing users to flexibly divide VLANs according to their needs.

It supports QoS and three priority modes based on ports, 802.1P, and DSCP to optimize bandwidth configuration.

Port aggregation is supported, which effectively increases link bandwidth, implements link backup, and improves link reliability.

Port mirroring is supported, and data from a port is forwarded to the mirrored port for network monitoring.

Port monitoring is supported, and the traffic information of each port is counted to facilitate traffic monitoring and network anomaly analysis.

It supports bandwidth control, configures port data input/output transmission rates, and reasonably allocates and utilizes bandwidth.

Storm suppression is supported to limit the broadcast traffic allowed to be received by the port to prevent broadcast storms from seriously slowing down network performance.
