The sequence control function supports the configuration of multiple sets of function parameters
Two trigger types: Frame Start / Frame Burst Start
Two exposure modes: Standard Exposure Mode / Minimal Exposure Mode
Gamma, pixel sampling, digital shift, black level
Lookup table, parameter group, counter, and timer functions
Burst acquisition and level-controlled exposure functions are supported
Remove the parameter range limit, and expand the range value of parameters such as exposure and gain
A 16KB user data area is provided to save algorithm coefficients, parameter configurations, etc

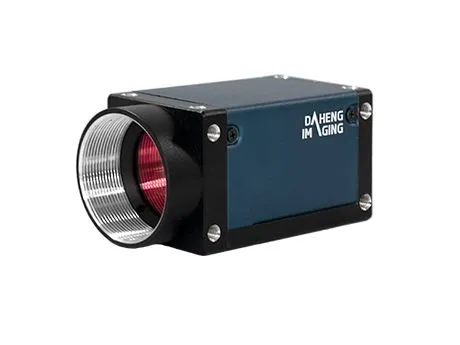

Model | MER3-1221-24G3M-P |
Brand | Daheng image |
Resolution | 4096×3000 |
Frame rate (fps) | 23.9 |
Sensor manufacturers | Sony |
Sensor | 1/1.1" IMX545 Global shutter CMOS |
Cell size | 2.74μm |
Pixel depth | 8 bit，12 bit |
Data interface | 2.5gige |
Lens mount | C |
Spectrum | Black and white |
Image data format | Mono8，Mono12 |
Signal-to-noise ratio | 39.85 db |
Exposure time | Standard: 3μs ~ 20μs, actual step size: 1μs; 21μs ~ 1s, actual step size: 1 line cycle; Minimum: 1 ~ 2.4μs, actual step: 0.1μs |
Gain | 0db ~ 16db |
Binning | Not supported |
Pixel sampling | Sensor：1×1，2×2 |
Mirror flip | Horizontal mirroring, vertical mirroring |
I/O interface | 1 opto-decoupled isolated input, 2 bidirectional gpios |
Rated power | < 5.25 W @ 12 V / poe |
Power supply requirements | 12 ~ 24 VDC or poe |
Operating temperature | 0°C ~ +50°C |
Storage temperature | -20°C ~ +70°C |
Operating humidity | 10% ~ 80% |
Mechanical Dimensions (W×H×L) | 29 mm × 29 mm × 50.6 mm |
Weight | 69 g |
Certifications & Standards | CE，rohs，genicam，gige Vision |
">
