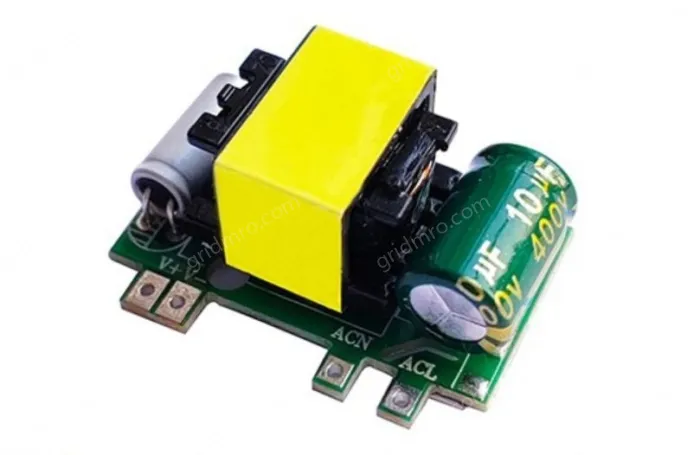

Small, safe isolated, regulated power supply switching power supply module 5V 2A

Ship to Stock in: Warehouse

Small, safe isolated, regulated power supply switching power supply module 5V 2A

★★★★★4.92142 Reviews

Wholesale Price

Model: SZLGLXSM-K7

Order No: SZLGLXSM-K7

SKU: 10000146638201

Category: Miniature safety disconnector

Brand: SZLG-lxsm

Size: 24.00mm, 18.50mm, 15.60mm,0.00cm

Weight: 15.00g

Product Selection Engineer: Hejiahui

Leading

Customer Service Guarantee

100% secure payment

Quality Guarantee

No Reason Returns

You May Also Like

Selling List

Description Reviews

SZLGLXSM-K7

Input voltage range: AC85V-275V DC110V-390V No load power: <0.05W Full load power: 5W half-load ripple 50mv full-load ripple 80mv Output characteristics: Multiple modules with the same voltage can be used in parallel to meet the needs of small space and large current Output voltage: 5V± 0.15V/9V± 0.15V/12V± 0.15V/3.3V main 0.15V no load and full load, light load minus 0.1V, heavy load rise, 50% load ripple 60mV Output current: 0mA-1000mA, 0mA-600mA, 0mA-450mA, 0mA-1500mA, enter constant current working mode when full load Output indicator: Green indicatorOutput efficiency: 5W efficiency approx. 80% Output protection: over-current, over-temperature, over-utility, short-circuit protection, etc Operating temperature: -20°C~+70°C, more than 5 years at 70 degrees, about 20-50 years at room temperature (it is not recommended to use above 70 °C), output filtering high-quality solid-state capacitors Product size: 24*18.5*15.6mm

★ ★ ★ ★ ★
