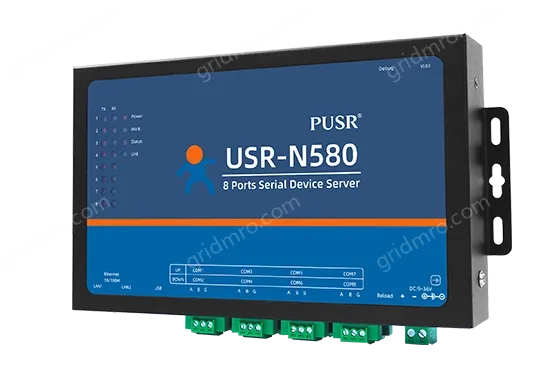

The eight-serial port server USR-N580 is a device used to transmit TCP/UDP data packets to RS485 interfaces transparently. Unique industrial function support, support Modbus gateway function, more convenient for industrial site use. It supports network printing, which is more convenient for the printer industry. The unique hardware watchdog mechanism has stronger anti-interference ability and completely refuses to fake death. This serial server is equipped with an ARM processor inside, which has low power consumption, fast speed and high stability. The built-in TCP/IP protocol stack allows users to easily complete the network functions of embedded devices, saving manpower, material resources and development time, enabling products to be put to market faster and enhancing competitiveness.8*RS485 Ports Serial Ethernet Converter is designed to realize bidirectional data transparent transmission between the serial port and the Ethernet port.
Classify | Parameter | Value |
Hardware Parameters | Operating Voltage | DC 9.0～36.0V |
Operating Current | 120mA@12V | |
Net interface format | RJ45,10/100Mbps | |
Serial baud rate | 600~921.6K(bps) | |
No. of serial ports | RS485*8 | |
Software parameters | Net protocol | IPV4, TCP/UDP, HTTP |
IP mode | Static IP, DHCP | |
DDNS | supports | |
User Configuring | Software/webpage configuring, serial/network AT commands | |
Operation mode | TCP server, TCP client, UDP server, UDP client Support two-way socket | |
Similar RFC2217 | support | |
HTTPD client | support | |
TCP server | Support up to 8 TCP Clients (user-defined) | |
Net buffer | 48Kbyte | |
Serial buffer | Dynamic packet buffer E.g: When the packet length is 10Byte, can buffer200 packets (2KB). When the packet length is 1460Byte, can buffer 5 packets (7.3KB). | |
Average delay | <10ms | |
Related software | USR-VCOM, set-up software | |
485_EN switching speed | <100us | |
Flow control | XON/XOFF | |
Registration packet | User-defined, MAC, USR Cloud | |
Web to serial | Websocket function | |
Heartbeat packet | UART, NET | |
Others | Hardware protection | Electrostatic protection ESD: level 3 Anti-surge: level 3 Pulse group: level 3 |
Dimension | 222*122*35mm(L*W*H With the terminal, ears) | |
Operating temperature | -40～+85°C | |
Storage temperature | -40~105°C | |
Operating humidity | -40～+85°C (Industrial) | |
Storage humidity | -45～105°C, 5～95%RH (non-condensing) | |
Accessories | Power adaptor, Ethernet cable | |
Packaging | Electrostatic bubble |
