Processor System

Onboard Intel Core 12/13th Generation Alder Lake-U/-P Raptor Lake-U/-P Series Processors

EFI BIOS

TPM2.0

Default CPU Built-In TPM2.0, External TPM 2.0 For Option

Memory

1*DDR5 SO-DIMM, Up To 32GB; Onboard Memory For Option, Up To 16GB, Totally UP to 48GB

Storage

1*M.2 M-Key 2280, Default Nvme Pcie 3.0 X4 Protocol, SATA 3.0 Protocol for Option

1*2.5inch HDD; 1*SATA3.0, 2Pin 5V

Display

1*HDMI 2.0 Interface, Support 4096x2160@60Hz

1*Mini DP, Support 4096x2160@60Hz

1*Type-C, Support Double-Sided USB 3.2 And DP 4K@60Hz

Supports Synchronous Or Asynchronous Display

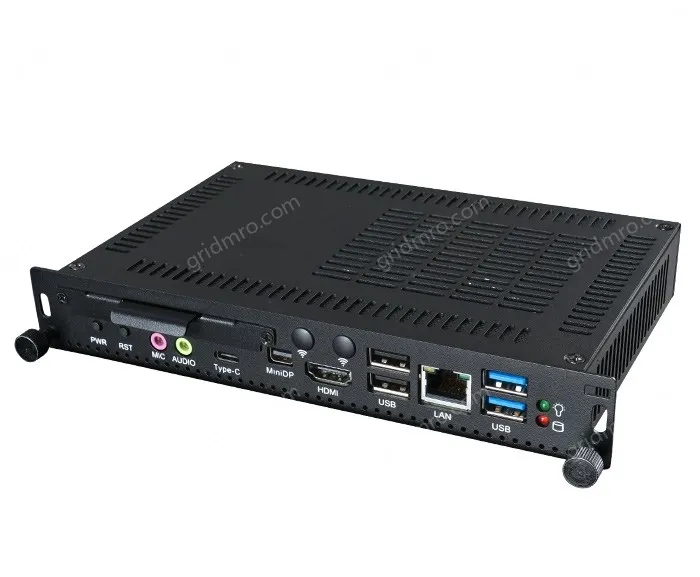

Board Side I/O Interface

1*Mini DP, 1*HDMI2.0, 2*USB3.0, 2*USB2.0

1*LAN (RTL8111 Network, Intel I219 For Option)

1*Power Indicator, 1*Hard Disk Indicator, 1*Switch Button, 1*Reset Button (One-Key Restore For Option)

1*Type-C, 1*Mic-In, 1*Line-Out, 1*DC JACK Power Interface

Extend Interface/Function

1*M.2 E-Key (Pcie 3.0 + USB2.0 Protocol, Support WIFI/BT Module)

1*M.2 B-Key (USB2.0 + USB3.0 Protocol, Support 4G/5G Module)

1 Set Of 8-Bit GPIO Headers, 2x5Pin, Pitch 2.0mm

1 Set Of RS232 Pin Header, 2x5Pin, Pitch 2.0mm

1*4Pin CPU Intelligent Temperature Control FAN, 1 X 4Pin PWM SYS FAN

Power Supply

DC 12-19V, 120W above

JAE 80Pin Interface Extension

HDMI 2.0/DP1.4 Output, Automatic Detection and Identification Switching

2 X USB2.0, 1 X USB3.0, 1 X TTL

Operating System

Windows10, Windows11, Linux

Color

Black

Size

180x119x30 Mm

Weight

Net Weight 750g, Gross Weight 800g With Package
