6ES7223-1BL22-0XA0

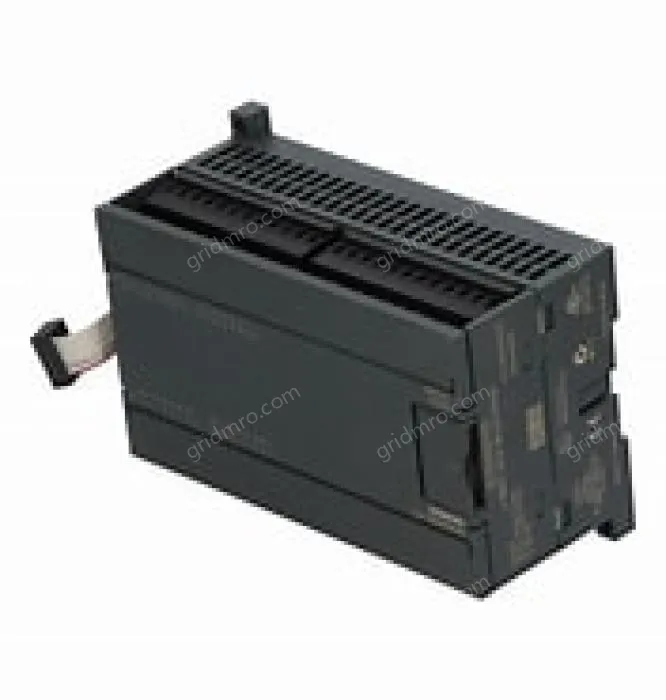

SIMATIC S7-200, DIGITAL I/O EM 223, FOR S7-22X CPU ONLY, 16DI 24V DC, SINK/SOURCE, 16DO 24V DC, 0.75A/POINT,SOURCE

Supply voltage

Load voltage L+

Rated value (DC)

24 V

permissible range, lower limit (DC)

20.4 V

permissible range, upper limit (DC)

28.8 V

Input current

from backplane bus 5 V DC, max.

160 mA

Power losses

Power loss, typ.

6 W

Digital inputs

Number of digital inputs

Input voltage

Type of input voltage

Rated value, DC

24 V

for signal "0"

0 to 5 V

for signal "1"

15 to 30 VDC

Input current

for signal "1", typ.

4 mA

Input delay (for rated value of input voltage)

for standard inputs

at "0" to "1", max.

4.5 ms

Digital outputs

Number of digital outputs

Short-circuit protection

Limitation of inductive shutdown voltage to

L+ (-48 V)

Output voltage

for signal "0", max.

0.1 V

for signal "1", min.

20 V

Output current

for signal "1" rated value

750 mA

Aggregate current of outputs (per group)

all mounting positions

maximum current per conductor/group

3 A; 3 / 3 / 6

Relay outputs

Switching capacity of contacts

with inductive load, max.

0.75 A; per output

on lamp load, max.

5 W

with resistive load, max.

0.75 A; per output

Cable length

Cable length, shielded, max.

500 m

Cable length unshielded, max.

150 m

Encoder

Connectable encoders

2-wire sensor

Yes

Permissible quiescent current (2-wire sensor), max.

1 mA

Galvanic isolation

Galvanic isolation digital inputs

Yes; Optocoupler

between the channels, in groups of

Galvanic isolation digital outputs

Yes; Optocoupler

between the channels, in groups of

4; 4 / 4 / 8

Isolation

Isolation checked with

500 V AC

Connection method

Plug-in I/O terminals

Yes

Dimensions

Width

137.5 mm

Height

80 mm

Depth

62 mm

Weights

Weight, approx.

360 g

Status

Jun 16, 2014
