6ES7223-1PH22-0XA0

Artikelnummer

6ES7223-1PH22-0XA0

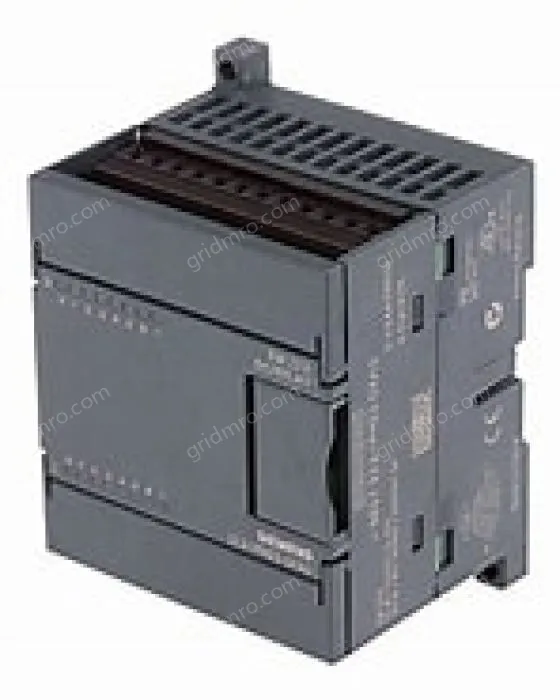

		SIMATIC S7-200, DIGITAL I/O EM 223, FOR S7-22X CPU ONLY, 8 DI 24 V DC, SINK/SOURCE, 8 DO RELAY, 2A/POINT
Supply voltage
permissible range, lower limit (DC)		5 V
permissible range, upper limit (DC)		30 V
Load voltage L+
● Rated value (DC)		24 V
● permissible range, lower limit (DC)		5 V
● permissible range, upper limit (DC)		30 V
Input current
from backplane bus 5 V DC, max.		80 mA
Power loss
Power loss, typ.		3 W
Digital inputs
Number of digital inputs		8
Input voltage
● Rated value, DC		24 V
● for signal "0"		0 to 5 V
● for signal "1"		15 to 30 VDC
Input current
● for signal "1", typ.		4 mA
Digital outputs
Number of digital outputs		8; Relays
Short-circuit protection		No
Output voltage
● for signal "1", min.		L+/L1
Relay outputs
● Number of operating cycles, max.		10 000 000; mechanically 10 million, at rated load voltage 100,000
Switching capacity of contacts
— with resistive load, max.		0.75 A; per output
Cable length
● Cable length, shielded, max.		500 m
Encoder
Connectable encoders
● 2-wire sensor		Yes
— permissible quiescent current (2-wire sensor), max.		1 mA
Galvanic isolation
Galvanic isolation digital inputs
● Galvanic isolation digital inputs		Yes; Optocoupler
Galvanic isolation digital outputs
● Galvanic isolation digital outputs		Yes; Relays
Dimensions
Width		71.2 mm
Height		80 mm
Depth		62 mm
Weights
Weight, approx.		300 g
last modified:		21.08.2014
