6ES7231-7PD22-0XA0

Artikelnummer

6ES7231-7PD22-0XA0

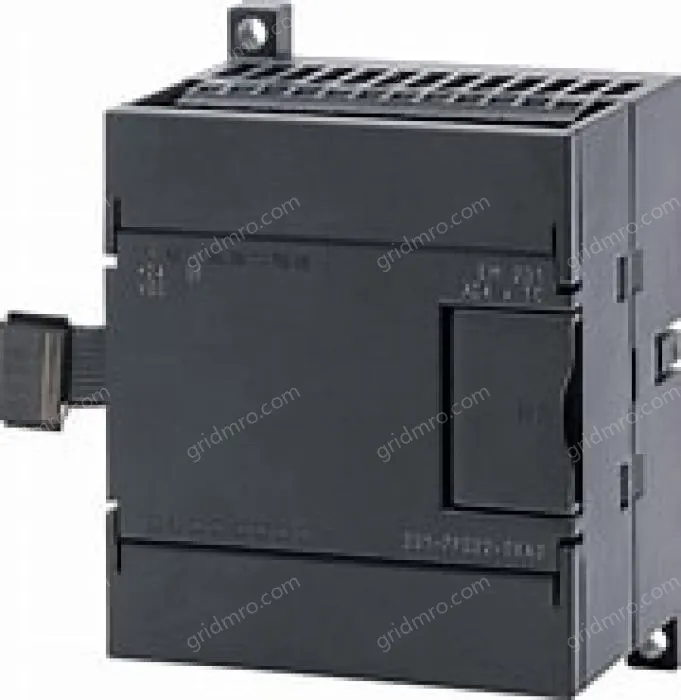

		SIMATIC S7-200, T/C INPUT MOD. EM 231, FOR S7-22X CPU ONLY, 4 AI, +/-80 MV AND THERMOCOUPLE TYPE J,K,S,T,R,E,N; 15BIT+VORZ.
Input current
from load voltage L+ (without load), max.		60 mA
from backplane bus 5 V DC, max.		87 mA
Power losses
Power loss, typ.		1.8 W
Analog inputs
Number of analog inputs		4
permissible input voltage for voltage input (destruction limit), max.		30 V
Loop resistance cable		100 Ω
Updating time (all channels)		405 ms
Input ranges
● Voltage		Yes
● Current		No
● Thermocouple		Yes
● Resistance thermometer		No
● Resistance		No
Input ranges (rated values), voltages
● -80 mV to +80 mV		Yes
● Input resistance (-80 mV to +80 mV)		1 MΩ
Input ranges (rated values), thermoelements
● Type E		Yes
● Type J		Yes
● Input resistance (type J)		1 MΩ
● Type K		Yes
● Input resistance (Type K)		1 MΩ
● Type N		Yes
● Input resistance (Type N)		1 MΩ
● Type R		Yes
● Input resistance (Type R)		1 MΩ
● Type S		Yes
● Input resistance (Type S)		1 MΩ
● Type T		Yes
● Input resistance (Type T)		1 MΩ
Cable length
● Cable length, shielded, max.		100 m; to the sensor
Analog value creation
Measurement principle		Sigma Delta
Integration and conversion time/resolution per channel
● Resolution with overrange (bit including sign), max.		16 bit; Temperature 0.1 °C / 0.1 °F
● Interference voltage suppression for interference frequency f1 in Hz		85 dB at 50 / 60 / 400 Hz
Displayable conversion value range
● bipolar signals		-27.648 to +27.648
Errors/accuracies
cold connection point		+/-1,5 °C
Repeat accuracy in steady state at 25 °C (relative to input area), (+/-)		0.05 %
Operational limit in overall temperature range
● Voltage, relative to output area, (+/-)		0.1 %
Interference voltage suppression for f = n x (f1 +/- 1 %), f1 = interference frequency
● common mode voltage, max.		120 V; AC
● Common mode interference, min.		120 dB; At 120 V DC
Interrupts/diagnostics/status information
Diagnostics indication LED
● External fault EXTF (red)		Yes
● Group error SF (red)		Yes
Galvanic isolation
Galvanic isolation analog inputs
● Galvanic isolation analog inputs		Yes
Permissible potential difference
between inputs and MANA (UCM)		500 V AC
between M internally and the inputs		500 V AC
Connection method
Plug-in I/O terminals		No
Dimensions
Width		71.2 mm
Height		80 mm
Depth		62 mm
Weights
Weight, approx.		210 g
last modified:		08.09.2014
