1 LAN Standard PoE separator

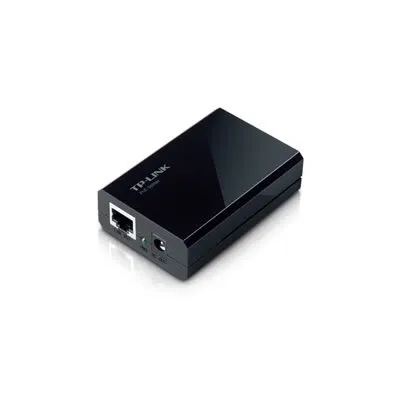

The TL-POE10R is a self-developed PoE separator developed by TP-LINK, which complies with the IEEE 802.3af standard and can separate the power and data signals transmitted over the network cable. The TL-POE10R can be used in conjunction with IEEE 802.3af-compliant power supply devices (such as TP-LINK's TL-POE150S, TL-SF1008P, and TL-SG3424P) to provide data and power for network devices that do not support PoE. TL-POE10R can output 5V/9V/12V three voltages, and can be used with power supply equipment, which can flexibly expand home and office networks without being limited by the layout of power lines.

IEEE 802.3af compliant
It provides 5V/9V/12VDC three-step output
The maximum transmission distance is up to 100 meters
Gigabit Ethernet port
Plug and play, no management required

1 LAN Standard PoE separator

Hardware specifications

Support standards	IEEE 802.3, 802.3u, IEEE802.3ab,IEEE802.3af CSMA/CD, TCP/IP
Port	LAN port: 1 x 10/100M/1000M adaptive RJ45 port PoE port: 1 x 10/100M/1000M adaptive RJ45 port
Basic functions	Compatible with IEEE802.3af compliant powered devices 12VDC/9VDC/5VDC three-step output The maximum transmission distance is 100m Gigabit Ethernet port Plug and play, no management required
LED indicator	PWR
Output power	12W (12VDC) /10W (5VDC)/9W(9VDC)
Size	80.8mm54mm24mm(WDH)
Use environment	Operating temperature: 0°C~40°C Storage temperature: -40°C~70°C Operating humidity: 10%~90% non-condensing Storage humidity: 5%~90% non-condensing
