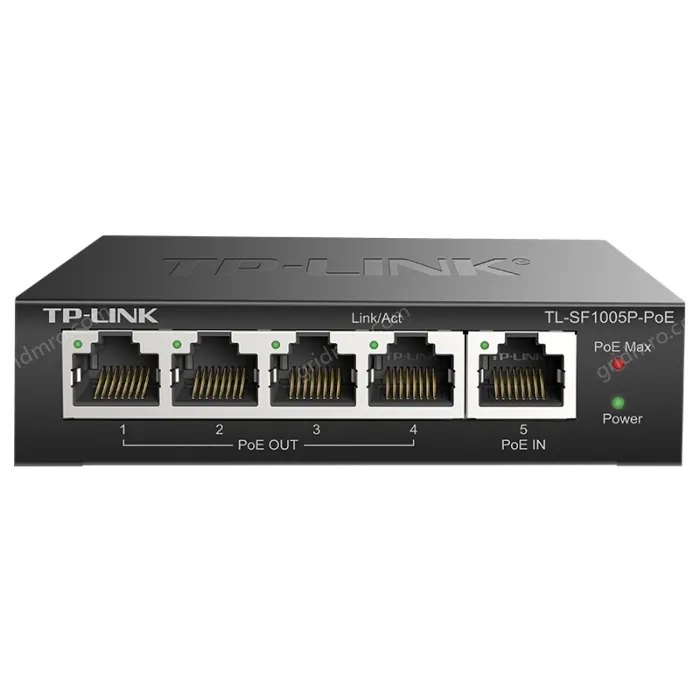

TL-SF1005P-PoE is an unmanaged PoE switch independently developed by TP-LINK that integrates PoE power supply and PoE power reception, providing 5 100 Gigabit RJ45 ports, of which port 1~4 supports PoE power supply and port 5 supports PoE power reception. The device meets the IEEE 802.3af/at standard, and the maximum PoE output power of the whole machine is 30W. Connect the upper-level PoE power-out (PSE) device to the lower-level PoE power-receiving (PD) device to extend the data transmission distance and achieve multi-port long-distance PoE power supply. Plug and play, no configuration required, simple and convenient to use, to meet the needs of PoE power supply in scenarios such as visual security and wireless coverage.

• Provide 5 x 10/100M adaptive RJ45 ports
• Ports 1~4 support IEEE 802.3af/at standard PoE power supply
• Port 5 supports IEEE 802.3af/at standard PoE power
• The maximum PoE output power of the whole machine is 30W

All 100 megabits

• Five 10/100 Base-T RJ45 ports are available.
• All ports support non-blocking wire-speed forwarding for smoother transmission.
• Supports IEEE 802.3x full-duplex flow control and backpressure half-duplex flow control.

PoE power supply and PoE power receiving integration

• Ports 1~4 support PoE power supply to meet the needs of PoE power supply in scenarios such as visual security, teleconferencing systems, and wireless coverage.

Port 5 supports PoE power receiving and can be powered directly through the network cable, without the need for an external power supply.

• It complies with the IEEE 802.3af/at PoE power supply standard, and the maximum PoE output power of the whole machine is up to 30W.
• Automatically identify PoE devices for power supply without damaging non-PoE devices.
• As a relay for the upper-level PoE power-out (PSE) device and the lower-level PoE power-receiving (PD), it enables multi-port long-distance PoE power supply while extending the data transmission distance.

It's easy to use

• Plug and play, no configuration required, simple and convenient.
• Users can easily understand the working status of the device through the power indicator (Power) and port status indicator (Link/Act).
