Product Details

Model: 6ES7341-1CH02-0AE0
SKU: 10000004019402
Brand: SIEMENS
Size: 12.80000000 CM, 15.20000000 CM, 5.00000000 CM

Specifications

Output TypeSerial Communication

Description Reviews

Artikelnummer

6ES7341-1CH02-0AE0

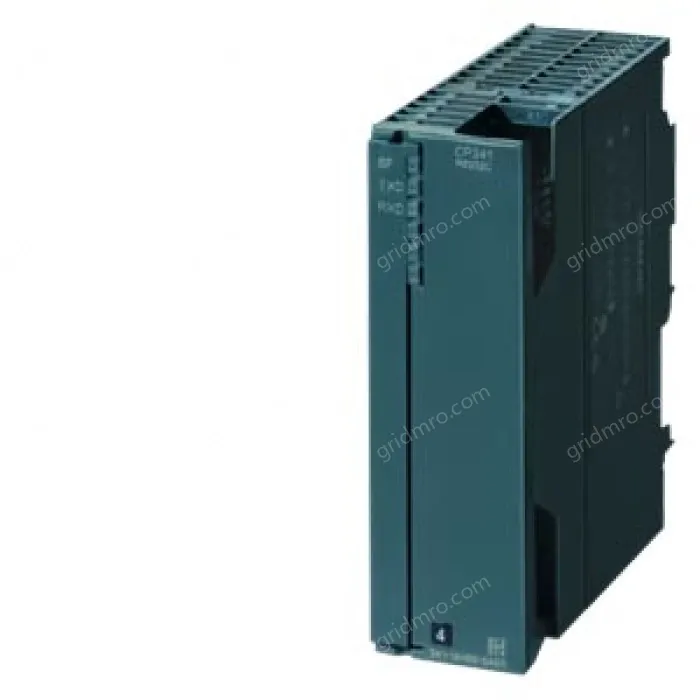

		SIMATIC S7-300, CP341 COMMUNICATION PROCESSOR WITH RS422/485 INTERFACE INCL. CONFIG. PACKAGE ON CD
Supply voltage
24 V DC		Yes
Input current
from backplane bus 5 V DC, max.		70 mA
from supply voltage L+, max.		100 mA
Power losses
Power loss, typ.		1.6 W
Power loss, max.		2.4 W
Interfaces
Number of interfaces		1; Isolated
Interface physics, RS 422/RS 485 (X.27)		Yes
Transmission rate, max.		115.2 kbit/s
Transmission rate, min.		0.3 kbit/s
Point-to-point
● Cable length, max.		1 200 m
● supported printers		Serial printers
● PtP		15-pin sub D socket
Integrated protocol driver
— 3964 (R)		Yes; not with RS 485
— ASCII		Yes
— RK512		Yes; not with RS 485
Telegram length, max.
— 3964 (R)		4 096 byte
— ASCII		4 096 byte
— RK 512		4 096 byte
Transmission speed, RS 422/485
— with 3964 (R) protocol, max.		115.2 kbit/s
— with ASCII protocol, max.		115.2 kbit/s
— with printer driver, max.,		115.2 kbit/s
— with RK 512 protocol, max.		115.2 kbit/s
Ambient conditions
Operating temperature
● Min.		0 °C
● max.		60 °C
Software
Block
● FB length in RAM, max.		6 100 byte; Data communication, sending and receiving
Connection method
Power supply		3 screw-type terminals: L+, M, GND
Dimensions
Width		40 mm
Height		125 mm
Depth		120 mm
Weights
Weight, approx.		300 g
last modified:		25.09.2014

ProductArticle Number (Market Facing Number)6ES7341-1CH02-0AE0Product Description SIMATIC S7-300, CP 341 Communications processor with RS422/485 interface incl. configuration package on CDProduct familyCP 341Product Lifecycle (PLM)PM400:Phase Out StartedPLM Effective DateProduct phase-out since: 01.10.2023Price dataRegion Specific PriceGroup / Headquarter Price Group2AP / 2APList PriceShow pricesCustomer PriceShow pricesSurcharge for Raw MaterialsNoneMetal FactorNoneDelivery informationExport Control RegulationsAL : N / ECCN : 9N9999Estimated dispatch time1 Day/DaysNet Weight (kg)0,306 KgPackaging Dimension12,80 x 15,20 x 5,00Package size unit of measureCMQuantity Unit1 PiecePackaging Quantity1Additional Product InformationEAN4025515077046UPC662643401516Commodity Code85176200LKZ_FDB/ CatalogIDST73Product Group2289Group CodeR151Country of originGermanyCompliance with the substance restrictions according to RoHS directiveSince: 31.03.2008Product classA: Standard product which is a stock item could be returned within the returns guidelines/period.WEEE (2012/19/EU) Take-Back ObligationYesREACH Art. 33 Duty to inform according to the current list of candidates

Lead CAS-No. 7439-92-1 > 0, 1 % (w / w)

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Lead monoxide (lead ... CAS-No. 1317-36-8 > 0, 1 % (w / w)

Lead monoxide (lead oxide)

4,4'-isopropylidened... CAS-No. 80-05-7 > 0, 1 % (w / w)

4,4'-isopropylidenediphenol (Bisphenol A, BPA)

Perfluorobutane sulfonic ... > 0, 1 % (w / w)

Perfluorobutane sulfonic acid (PFBS) and its salts

SCIP number556bf47d-33a5-40ed-aa78-e5f06f748473Classifications

	Version	Classification
eClass	12	27-24-22-08
eClass	6	27-24-22-08
eClass	7.1	27-24-22-08
eClass	8	27-24-22-08
eClass	9	27-24-22-08
eClass	9.1	27-24-22-08
ETIM	7	EC001423
ETIM	8	EC001423
ETIM	9	EC001423
IDEA	4	3564
UNSPSC	15	32-15-17-05
