Gamma, black level, digital shift
Flat field correction, static dead pixel correction, sharpening
Binning, Decimation
Support color conversion, ambient light presets, saturation, white balance and other functions
Counters, timers, look-up tables, parameter groups

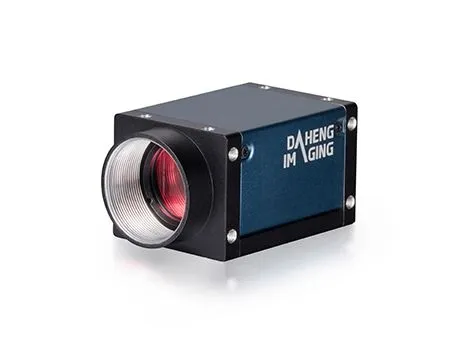

Model | ME2P-2621-4GC-P |
Brand | Daheng image |
Resolution | 5120×5120 |
Frame rate (fps) | 4.5 |
Sensor manufacturers | Gpixel |
Sensor | 1.1" GMAX0505 Global shutter CMOS |
Cell size | 2.5μm |
Pixel depth | 8 bit，12 bit |
Data interface | Gige |
Lens mount | C，CS |
Spectrum | Colored |
Image data format | Bayer GB8，Bayer GB12 |
Signal-to-noise ratio | 35.65 db |
Exposure time | Standard: 14μs ~ 1s |
Gain | 0db ~ 16db |
Binning | 1×1，1×2，1×4，2×1，2×2，2×4，4×1，4×2，4×4 |
Pixel sampling | Horizontal fpgas, Vertical Sensors: 1×1, 1×2, 1×4, 2×1, 2×2, 2×4, 4×1, 4×2, 4×4 |
Mirror flip | Horizontal mirroring, vertical mirroring |
I/O interface | 1 optodecoupled input, 1 optodecoupled output, 2 bidirectional gpios |
Rated power | < 4.25 W @ 24 VDC； < 4.25 W @ poe |
Power supply requirements | 12 ~ 24 VDC or poe |
Operating temperature | 0°C ~ +45°C |
Storage temperature | -20°C ~ +70°C |
Operating humidity | 10% ~ 80% |
Mechanical Dimensions (W×H×L) | 36 mm × 31 mm × 50.6 mm (without C-mount length) |
Weight | 75 g |
Certifications & Standards | CE，rohs，gige Vision，genicam，IEEE802.3af |
">
