Custom ROI is supported, and the frame rate can be increased by reducing the resolution
Programmable settings for gain and exposure time
Gain, exposure time
Two modes of operation: continuous acquisition / soft trigger acquisition
It can output a flash sync signal to achieve precise synchronization of exposure and fill light
The acquisition speed level can be adjusted, which optimizes the simultaneous acquisition and transmission of multiple machines
Provides hardware encryption
Rugged all-metal housing and cable locking
Hot-swappable
GenICam ™ is supported, and third-party software such as HALCON, MERLIC, and LabVIEW can be directly connected
CE and RoHS compliant
The driver is optimized for 32bit/64bit Windows and supports Linux operating system
Free SDK and abundant source code for secondary development instances

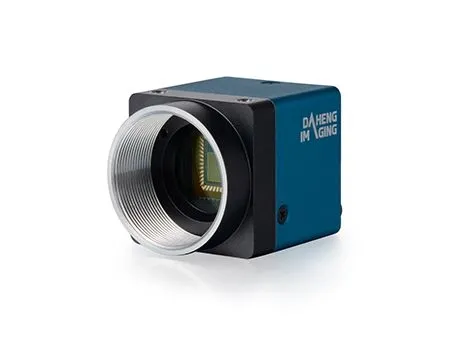

Model | MER-130-30UM-L |
Brand | Daheng image |
Resolution | 1280×1024 |
Frame rate (fps) | 30 |
Sensor manufacturers | On Semi |
Sensor | 1/1.8" MT9M001 Rolling shutter CMOS |
Cell size | 5.2μm |
Pixel depth | 8 bit，10 bit |
Data interface | USB2.0 |
Lens mount | C，CS |
Spectrum | Black and white |
Image data format | Mono8，Mono10 |
Signal-to-noise ratio | 45 db |
Dynamic range | 60 db |
Rated power | < 1 W @ 5 VDC |
Power supply requirements | 5 VDC |
Operating temperature | 0°C ~ +60°C |
Operating humidity | 10% ~ 80% |
Mechanical Dimensions (W×H×L) | 29 mm × 29 mm × 29 mm (without C-mount length) |
Weight | 40 g |
Certifications & Standards | CE，rohs，genicam |
">
